• Electric drive extended range, (149hp 294 lb-ft of torque )
• Emissions, Federal, Tier 2
• E10 Fuel capable
• Axle, 2.64 final drive ratio
• Front wheel drive
• Battery, 18.4 kWh, Propulsion, Lithium-ion, Rechargeable Energy Storage System includes liquid thermal management system with active control
• Charge cord, 120-volt, portable
• Battery, 12-volt with Rundown Protection
• Suspension, front, MacPherson strut
• Suspension, rear semi-independent, compound crank
• Steering, Electric Power Steering (EPS) assist, variable for low to high speed maneuvers
• Brakes, 4-wheel anti-lock disc with electro-hydraulic power
• Brake, parking, electric

• Wheels, 17" x 7" (43.2 cm x 17.8 cm) Split 5-spoke aluminum, Ultra-bright machined finish with premium painted pockets
• Tires, 215/50R17 all-season, blackwall, low-rolling resistance
• Recovery hook, front
• Headlamps, LED low-beam, halogen reflector high-beam, automatic exterior lamp control
• Lamp, LED center high-mounted stop/brake (CHMSL)
• Tail lamps, LED illumination
• Mirrors, heated, outside power-adjustable, body-color, manual-folding
• Glass, solar absorbing
• Wipers, front intermittent, variable with washers

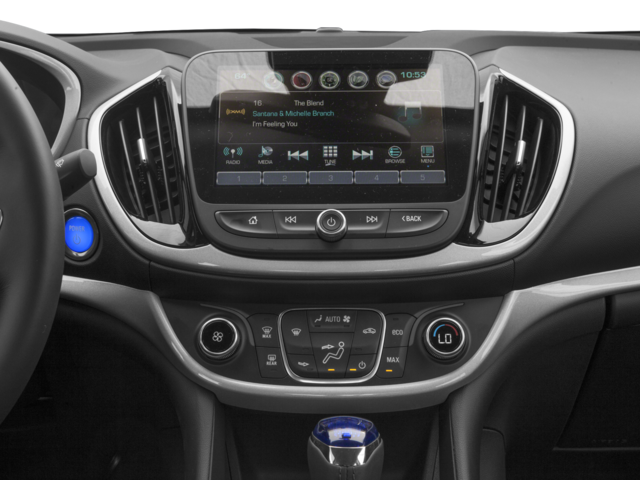

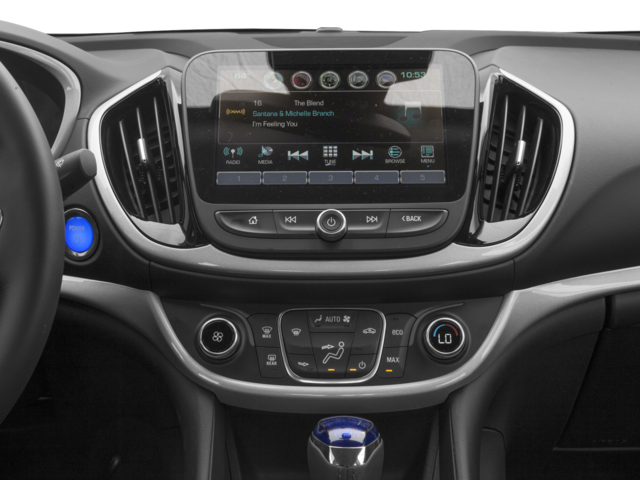

• Audio System, Chevrolet MyLink Radio with 8" diagonal color touch-screen, AM/FM stereo, seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; voice-activated technology for radio and phone; featuring Apple CarPlay capability for compatible phone
• Audio system feature, Bose premium speakers with 8-speakers, including sub-woofer
• Audio system feature, auxiliary input jack, located in front storage bin
• Audio interface, USB port, includes 2 located in front storage bin
• SiriusXM Satellite Radio is standard on nearly all 2016 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (IMPORTANT: The SiriusXM Satellite Radio trial package is not provided on vehicles that are ordered for Fleet Daily Rental ("FDR") use. If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• OnStar with 4G LTE and built-in Wi-Fi hotspot to connect to the internet at 4G LTE speeds includes 3GB or 3 months OnStar Data Trial (whichever comes first) (Available 4G LTE Wi-Fi requires compatible mobile device, active OnStar subscription and data plan after trial.)
• Off-board connectivity via internet
• Antenna, roof-mounted, shark-fin type

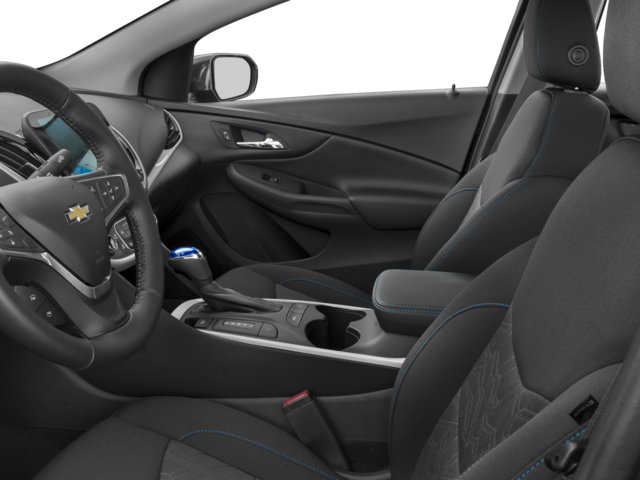

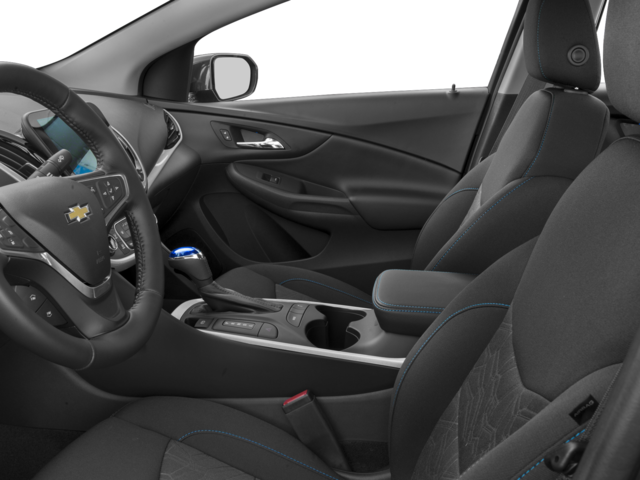

• Seats, front bucket with reclining seatbacks and adjustable head restraints
• Seats, leather-appointed

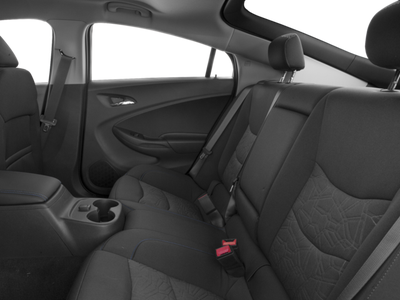

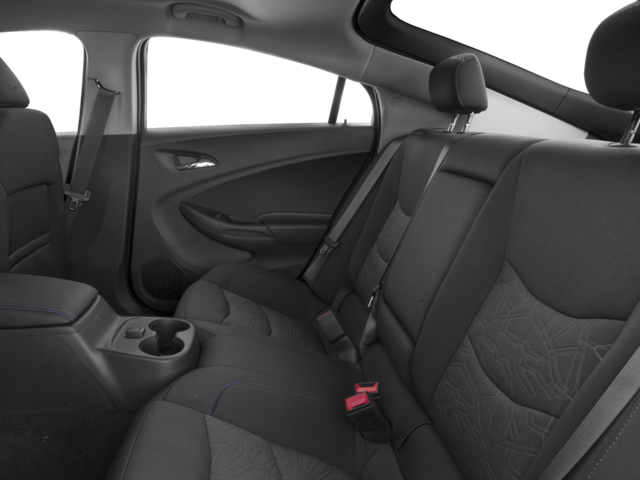

• Seat, rear 60/40 split-folding
• Seats, heated driver and front passenger includes AUTO heated seats (selectable automatic activation)
• Seats, heated, rear, outboard positions
• Seat adjuster, driver 6-way manual, fore/aft, up/down with recline
• Seat adjuster, front passenger 6-way manual, fore/aft, up/down with recline
• Head restraints, 2-way adjustable (up/down), front
• Head restraints, 2-way adjustable (up/down), rear, outboard seats

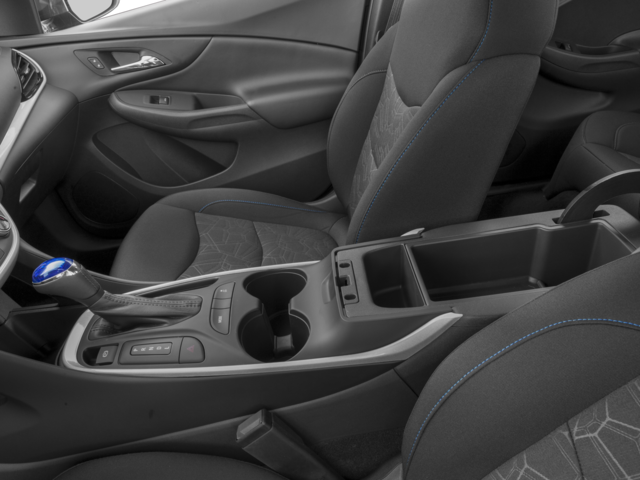

• Console, center, covered storage bin with front and rear dual cup holders and rear 12-volt power outlet
• Storage, open, located forward of shifter
• Power outlets, 2 auxiliary, 12-volt 1 in front storage bin and 1 in rear of center console
• Wireless Charging for devices
• Floor mats, carpeted front and rear

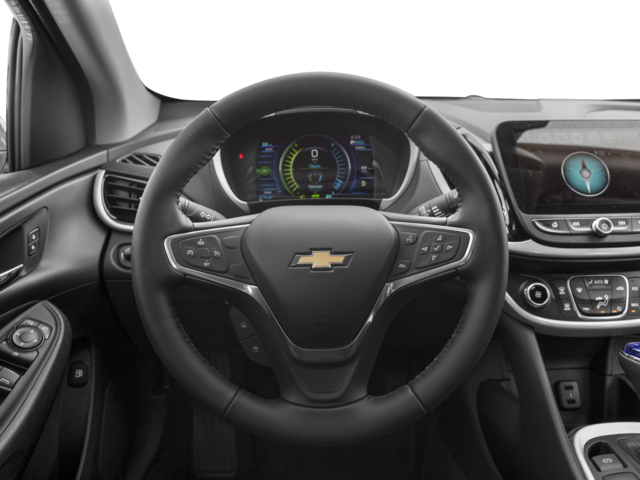

• Steering column, tilt and telescopic

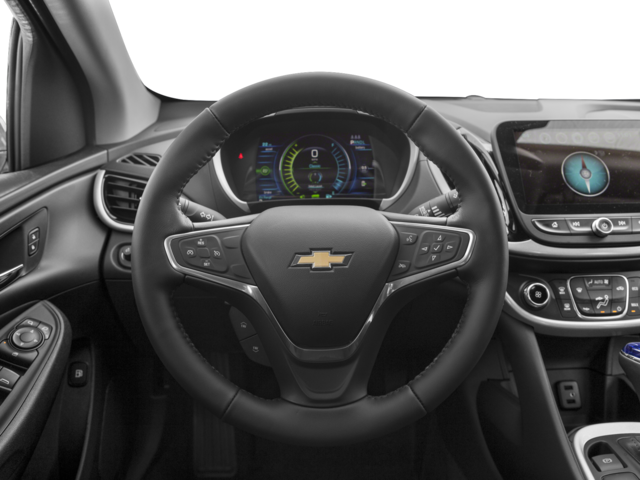

• Steering wheel, leather-wrapped
• Steering wheel controls, mounted audio controls
• Steering wheel, heated

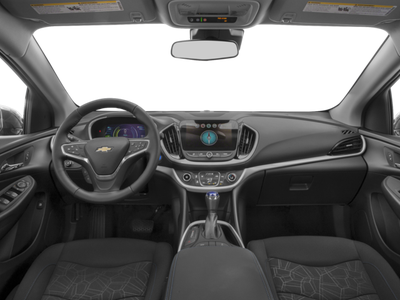

• Instrumentation, 8-inch color, digital reconfigurable LCD screen includes Driver Information Center, compass, trip/fuel information, vehicle information and vehicle messages

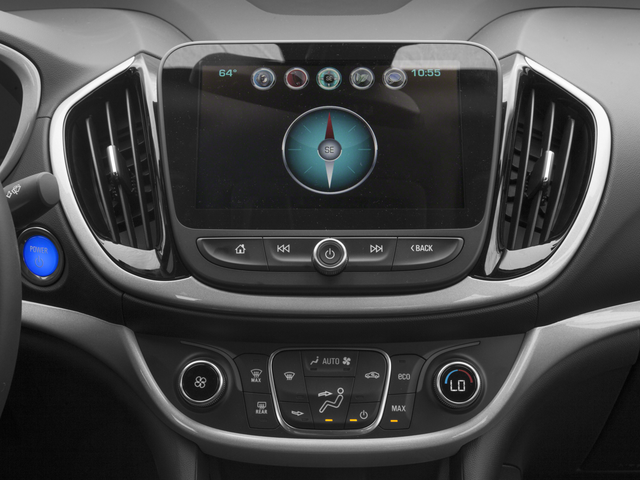

• Display, center, 8" diagonal LCD touch screen includes energy information screens with programmable charge times
• Drive mode control switch, Normal, Sport, Mountain and Hold modes
• Mobile application, OnStar RemoteLink app requires compatible smartphone
• Charge control, programmable time of day with charging status indicator light on instrument panel
• Charge control, location based, selectable GPS enabled with programmable "home" charging setting
• Keyless ignition, engaged with electronic push button start
• Windows, power with Express-Down on all, driver Express-Up with anti-pinch override
• Door locks, power programmable with delayed locking feature and lockout protection
• Keyless Access, passive unlock and lock on all doors and liftgate
• Remote Keyless Entry includes remote start, panic alarm and delayed charging override functions
• Remote vehicle starter system
• Cruise control, electronic with set and resume speed, steering wheel mounted controls
• Theft-deterrent system, anti-theft alarm with immobilizer
• Remote panic alarm
• Air conditioning, single-zone automatic climate control
• Defogger, rear-window electric
• Glovebox, passenger-side
• Storage, front door panels, dedicated umbrella pocket and bottle holder
• Map pockets, driver and front passenger seatbacks
• Mirror, inside rearview auto-dimming
• Visors, driver and front passenger illuminated vanity mirrors, covered, sliding
• Assist handles, 2, rear outboard with rear coat hooks
• Lighting, interior, ambient LED-based front reading lights, dome and incandescent cargo area lamp
• Shift knob, leather-wrapped
• Storage, covered, dedicated for vehicle charging cord located in rear cargo area
• Cargo cover

• StabiliTrak, stability control system with brake assist includes Traction Control
• Tire inflation kit
• Daytime Running Lamps, LED illumination
• Air bag, Passenger Sensing System sensor indicator inflatable restraint, front passenger/child presence detector (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, dual-stage frontal, driver and right-front passenger includes Passenger Sensing System (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, thorax side-impact seat-mounted, side-front outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, thorax side-impact seat-mounted, side-rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, head curtain side-impact, front and rear outboard seating positions (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, knee, driver and front passenger (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Guidance plan for 3 years including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling) (Visit www.onstar.com for coverage map, details and system limitations. Services may vary by model and conditions.)
• OnStar Basic plan for 5 years including limited RemoteLink mobile app services, Advanced Diagnostics and Dealer Maintenance Notification (Basic Plan available for 5 years from the date of vehicle delivery, and is transferable. Does not include Emergency, Security or Navigation services.)
• Automatic Parking Assist includes front, rear, parallel and perpendicular parking assist
• Rear Vision Camera
• Pedestrian safety signal automatic audible signal during low speed driving
• Safety belts, 3-point, all seating positions includes front seat dual pretensioners
• Lockout switch, child, rear doors and windows, manual control
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats
• Tire Pressure Monitor System

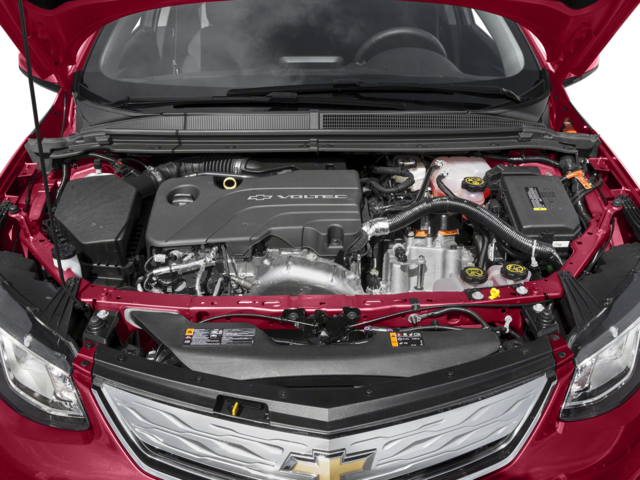

ENGINE, RANGE EXTENDER, 1.5L VARIABLE VALVE TIMING, DI, DOHC 4-CYLINDER

(STD)

• Comfort Package
• Driver Confidence Package
• Preferred Equipment Group 2LZ
• 8 Speakers
• AM/FM radio: SiriusXM
• Premium 8-Speaker Audio System Feature w/Subwoofer
• Premium audio system: Chevrolet MyLink
• Radio: Chevrolet MyLink AM/FM Stereo
• SiriusXM Satellite Radio
• Air Conditioning
• Automatic temperature control
• Rear window defroster
• Power steering
• Power windows
• Remote keyless entry
• Steering wheel mounted audio controls
• Speed-sensing steering
• Traction control
• 4-Wheel Disc Brakes
• ABS brakes
• Dual front impact airbags
• Dual front side impact airbags
• Emergency communication system: OnStar Guidance
• Front anti-roll bar
• Front wheel independent suspension
• Knee airbag
• Low tire pressure warning
• Occupant sensing airbag
• Overhead airbag
• Rear side impact airbag
• Brake assist
• Electronic Stability Control
• Exterior Parking Camera Rear
• Delay-off headlights
• Fully automatic headlights
• Panic alarm
• Security system
• Speed control
• Bumpers: body-color
• Heated door mirrors
• Outside Heated Power-Adjustable Body-Color Mirrors
• Power door mirrors
• Apple CarPlay
• Auto-dimming Rear-View mirror
• Compass
• Driver door bin
• Driver vanity mirror
• Front reading lights
• Heated Steering Wheel
• Heated steering wheel
• Illuminated entry
• Outside temperature display
• Overhead console
• Passenger vanity mirror
• Rear Cross-Traffic Alert Sensor Indicator
• Rear reading lights
• Rear seat center armrest
• Side Blind Zone Alert w/Lane Change Alert
• Telescoping steering wheel
• Tilt steering wheel
• Trip computer
• Front Bucket Seats
• Front Center Armrest
• Heated Driver & Passenger Front Seats
• Heated front seats
• Heated rear seats
• Leather-Appointed Seat Trim
• Split folding rear seat
• Passenger door bin
• Alloy wheels
• Wheels: 17" x 7" Split 5-Spoke Aluminum
• Variably intermittent wipers

• Vehicle
• EPA Classification: Compact Cars
• Number of Passenger Doors: 4
• Mileage
• Fuel Economy Est-Combined (MPG): 42
• EPA Fuel Economy Est - City (MPG): 43
• EPA Fuel Economy Est - Hwy (MPG): 42
• EPA MPG Equivalent - Combined: 106
• Estimated Battery Range (mi): 53
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 7.4
• Weight Information
• Base Curb Weight (lbs): 3543
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Compound Crank
• Suspension Type - Front (Cont.): w/Coil Springs
• Suspension Type - Rear (Cont.): w/Coil Springs
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Brakes
• Brake Type: Regenerative
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 10.87 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): 10.00 x - TBD -
• Tires
• Front Tire Order Code: 5GP
• Rear Tire Order Code: 5GP
• Front Tire Size: P215/50R17
• Rear Tire Size: P215/50R17
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Steering
• Steering Type: Electric Pwr
• Steering Ratio (:1), Overall: 15.7
• Lock to Lock Turns (Steering): 3.0
• Turning Diameter - Curb to Curb (ft): 36.40
• Turning Diameter - Wall to Wall (ft): - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 8.9
• Exterior Dimensions
• Wheelbase (in): 106.10
• Length, Overall (in): 180.40
• Width, Max w/o mirrors (in): 71.20
• Height, Overall (in): 56.4
• Track Width, Front (in): 60.60
• Track Width, Rear (in): 61.80
• Min Ground Clearance (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Trunk Volume (ft³): 10.6
• Interior Dimensions
• Passenger Capacity: 5
• Passenger Volume (ft³): 90.0
• Front Head Room (in): 37.80
• Front Leg Room (in): 42.10
• Front Shoulder Room (in): 56.50
• Front Hip Room (in): 53.70
• Second Head Room (in): 35.80
• Second Leg Room (in): 34.70
• Second Shoulder Room (in): 53.20
• Second Hip Room (in): 51.30
• Summary

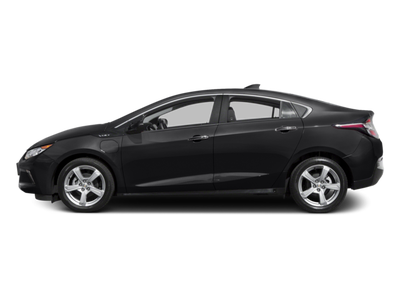

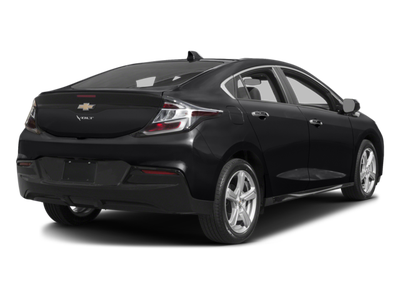

• Vehicle Name: Chevrolet Volt
• Body Style: Hatchback
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 1.3
